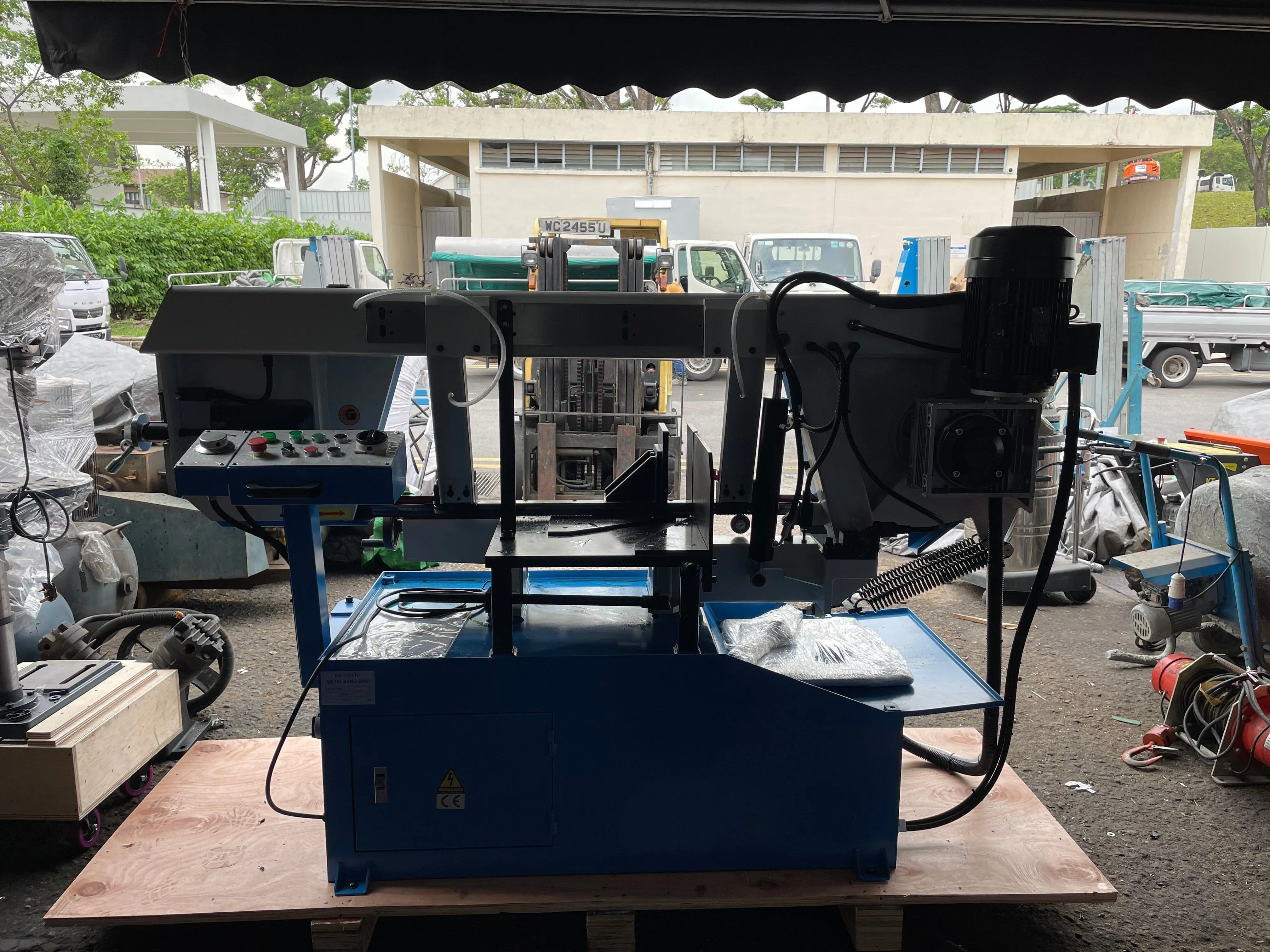

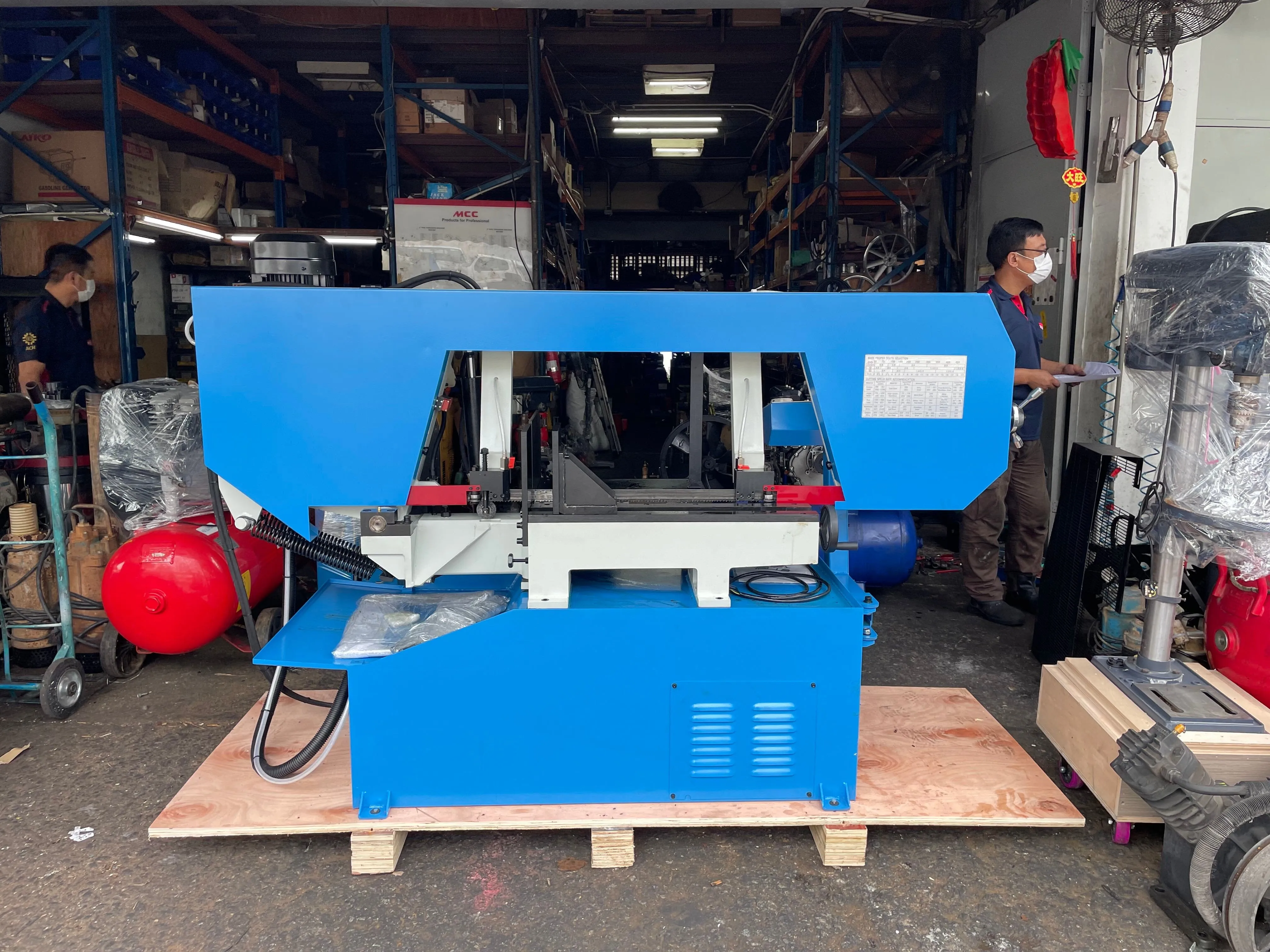

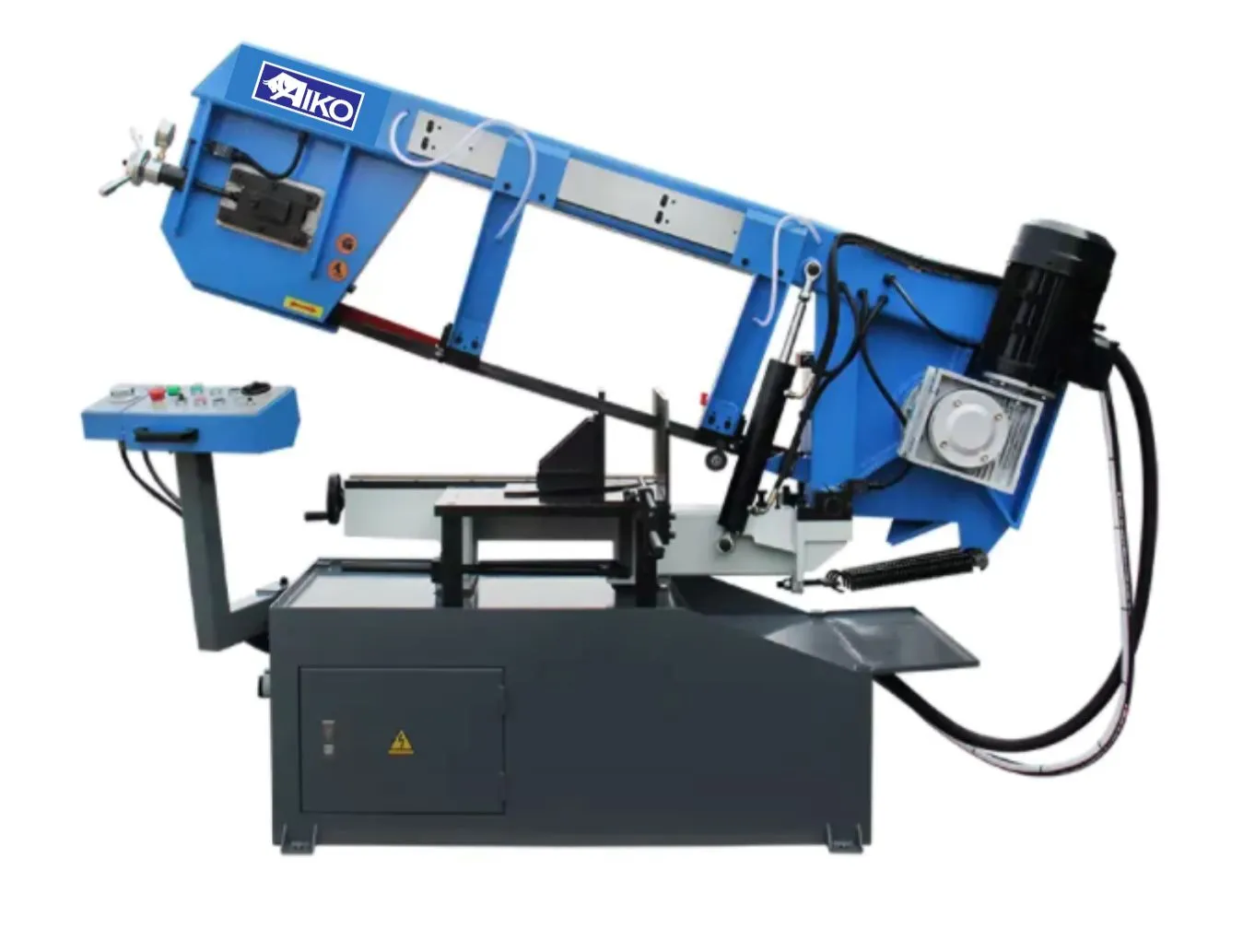

Aiko 16" 415V, 50Hz Automatic Metal Cutting Bandsaw Machine | Model : BSM-BS2114TH
Features :

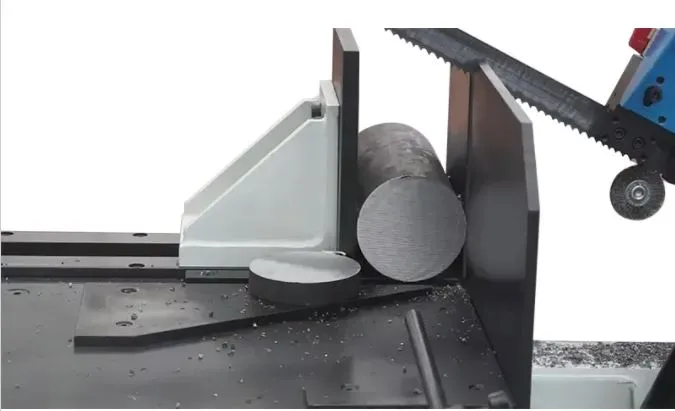

- Easy structure, max cutting 400mm round bar at 90°
- Saw frame swivel max. up to 60°, automatically up and down

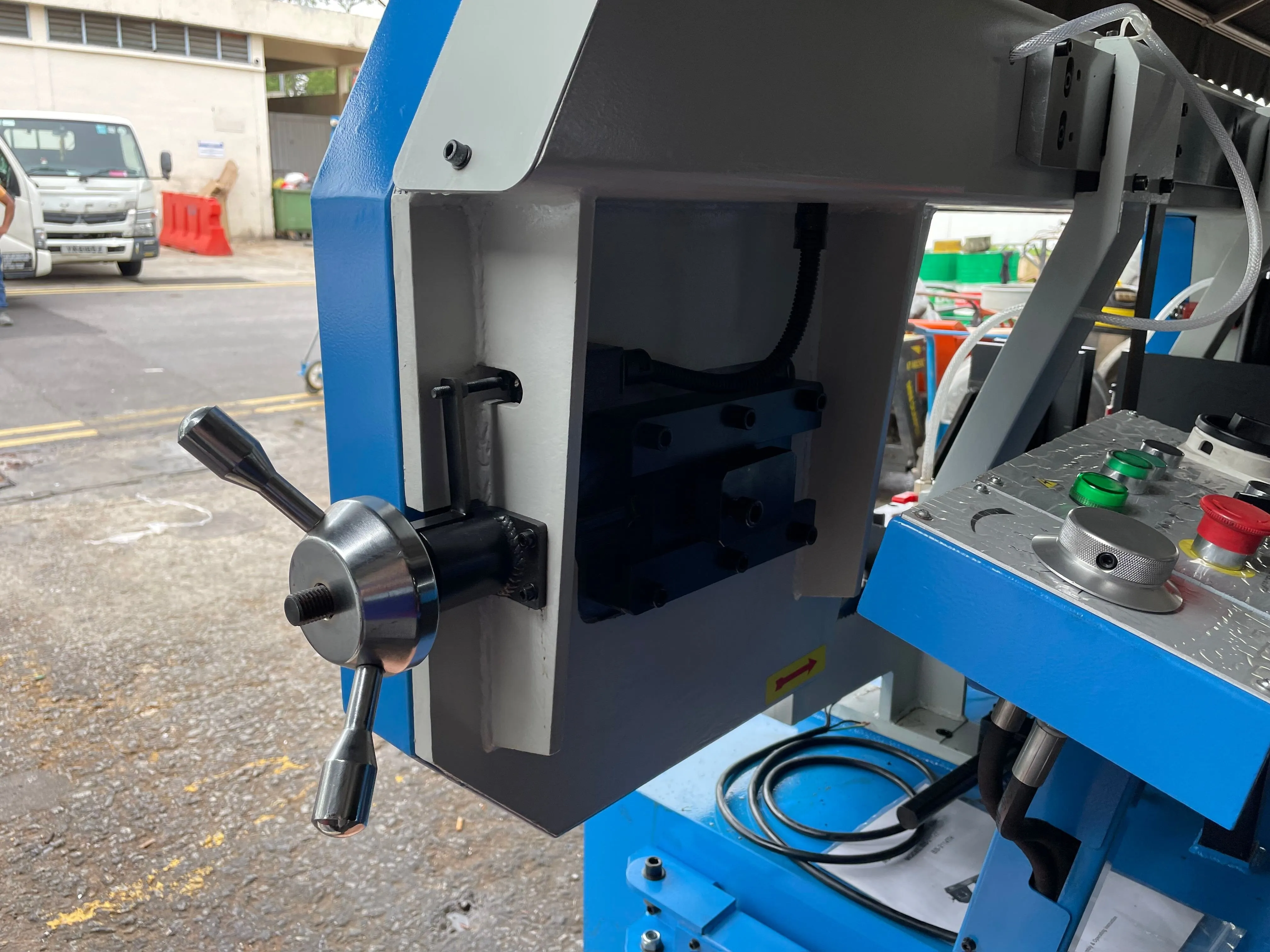

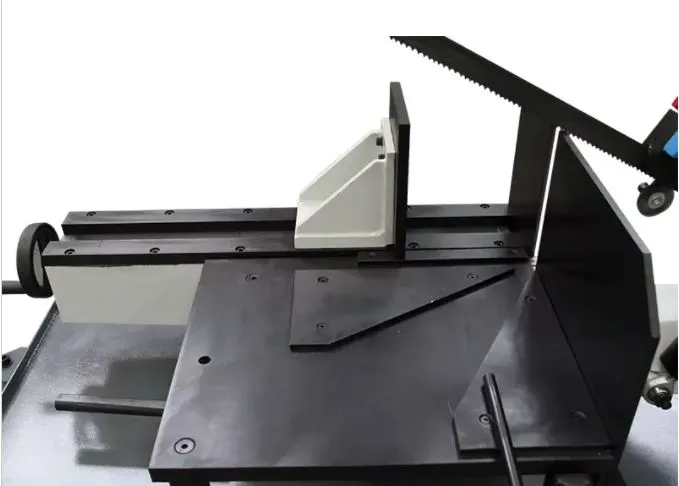

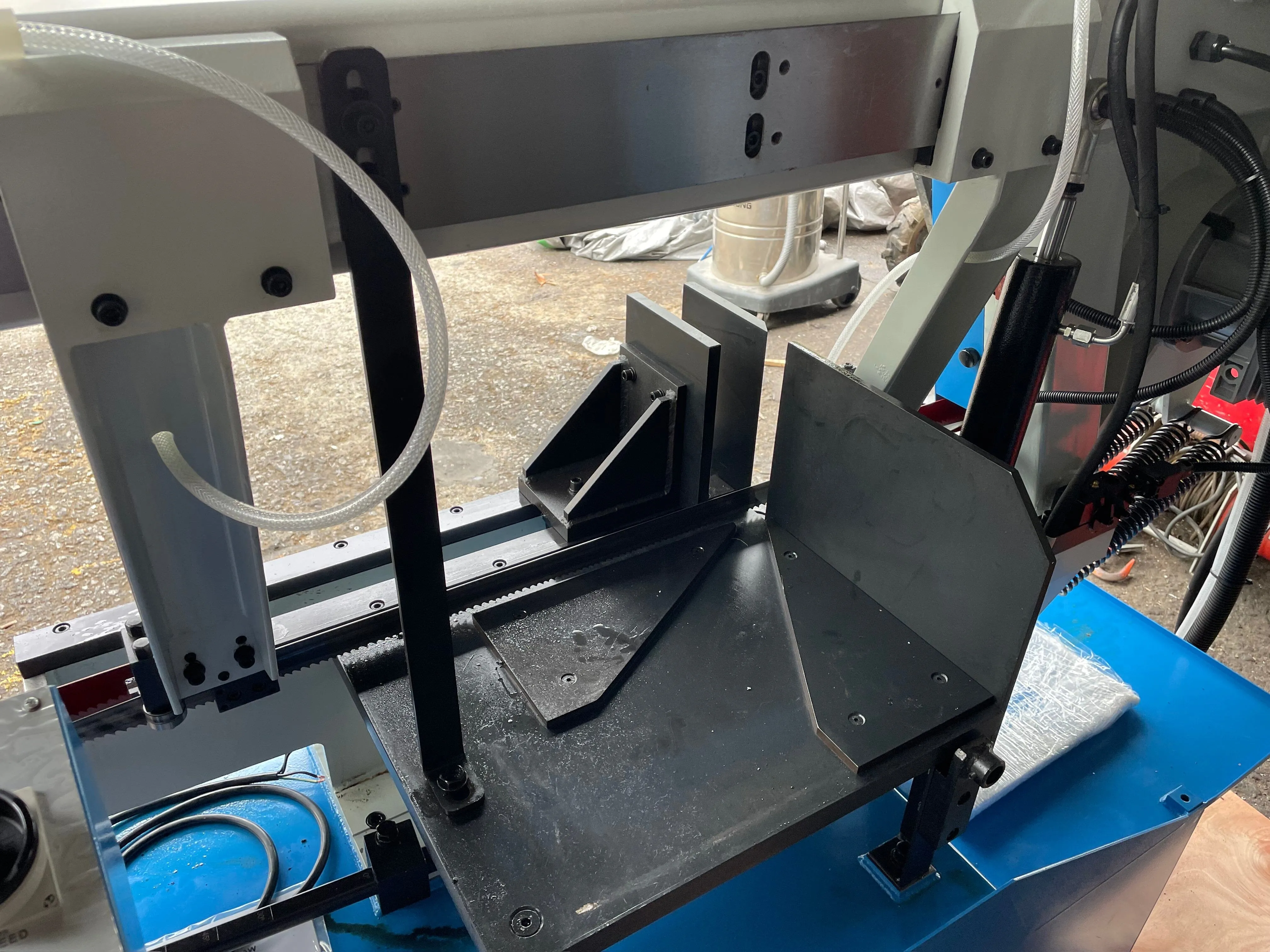

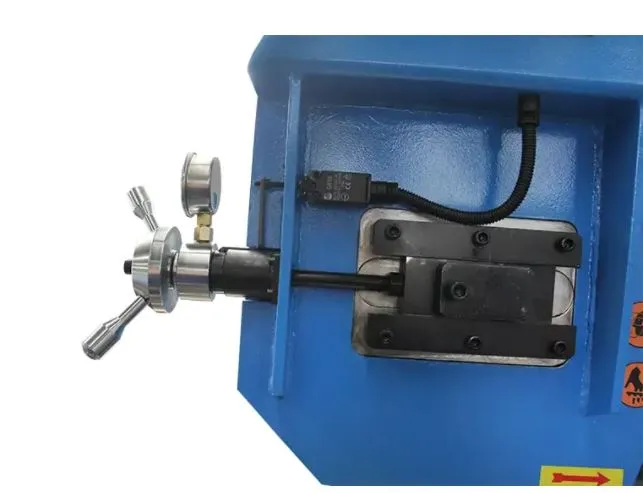

- Quick clamp, make cutting efficient
- Coolant system extend the saw blade life

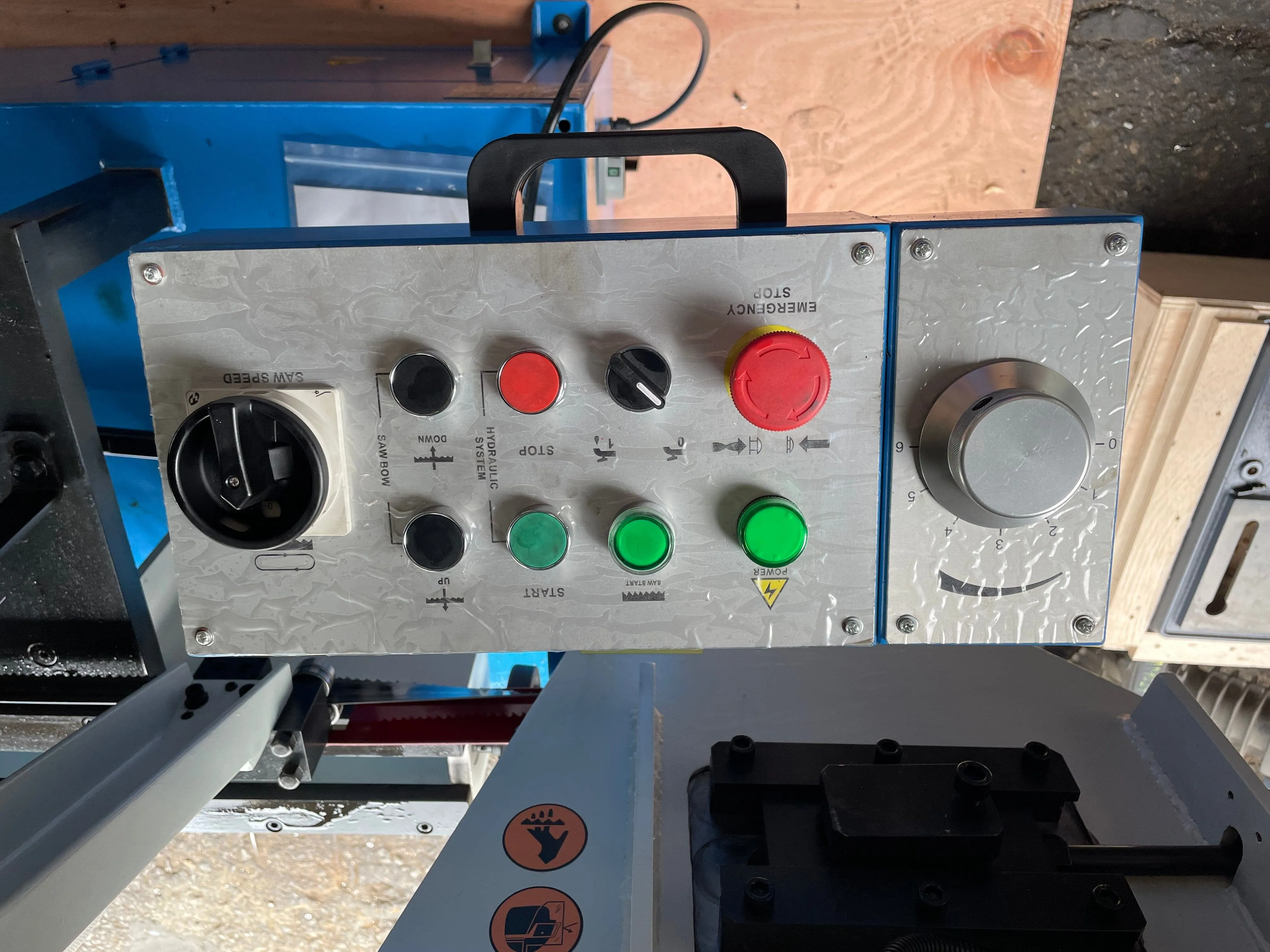

- Control panel, easy to operate the machine
- Gear drive band saw

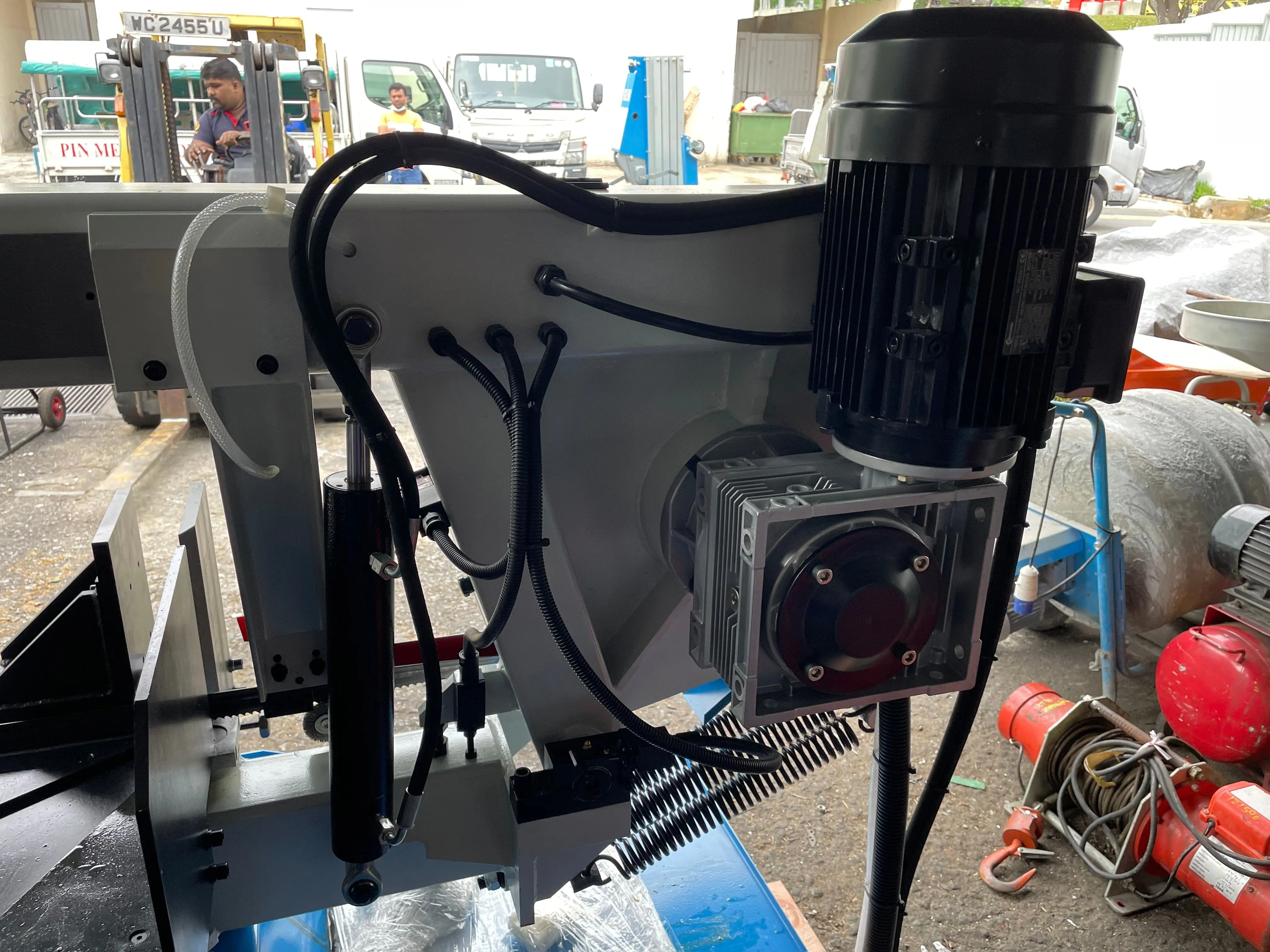

- 2.8kW powerful motor
Specifications :

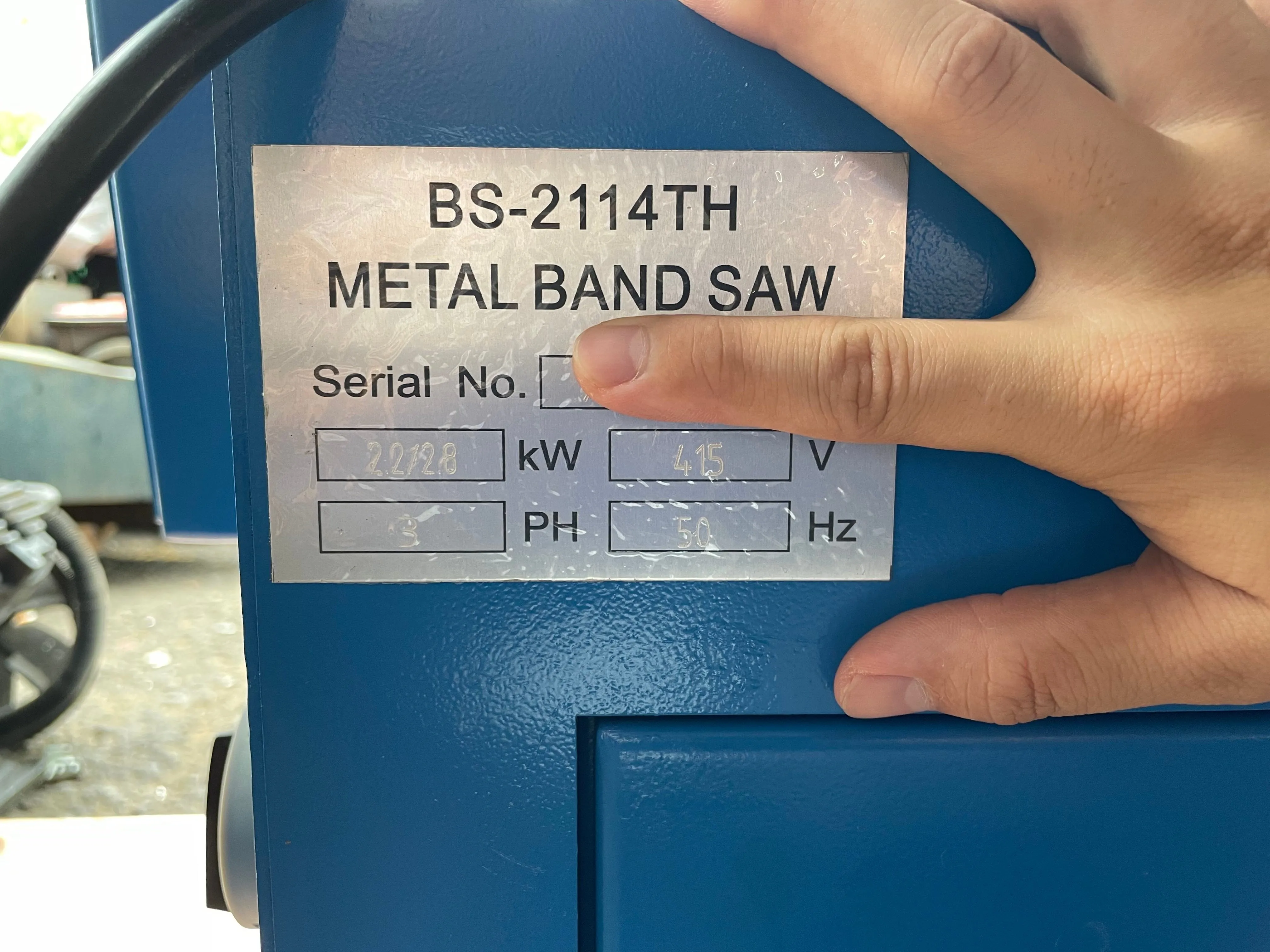

- Model : BSM-BS2114TH
- Voltage : 415 V
- Frequency : 50 Hz
- Cut Circular @ 90° : 400 mm
- Cut Rectangular @ 90° : 550 x 360 mm
- Cut Circular @ 60° : 150 mm
- Cut rectangular @60° : 250 x 200 mm
- Cut circular @45° : 340 mm
- Cut rectangular @45° : 400 x 340 mm
- Blade Speed : 48 / 70 m/min
- Blade Size : 34 x 1.1 x 4405 mm

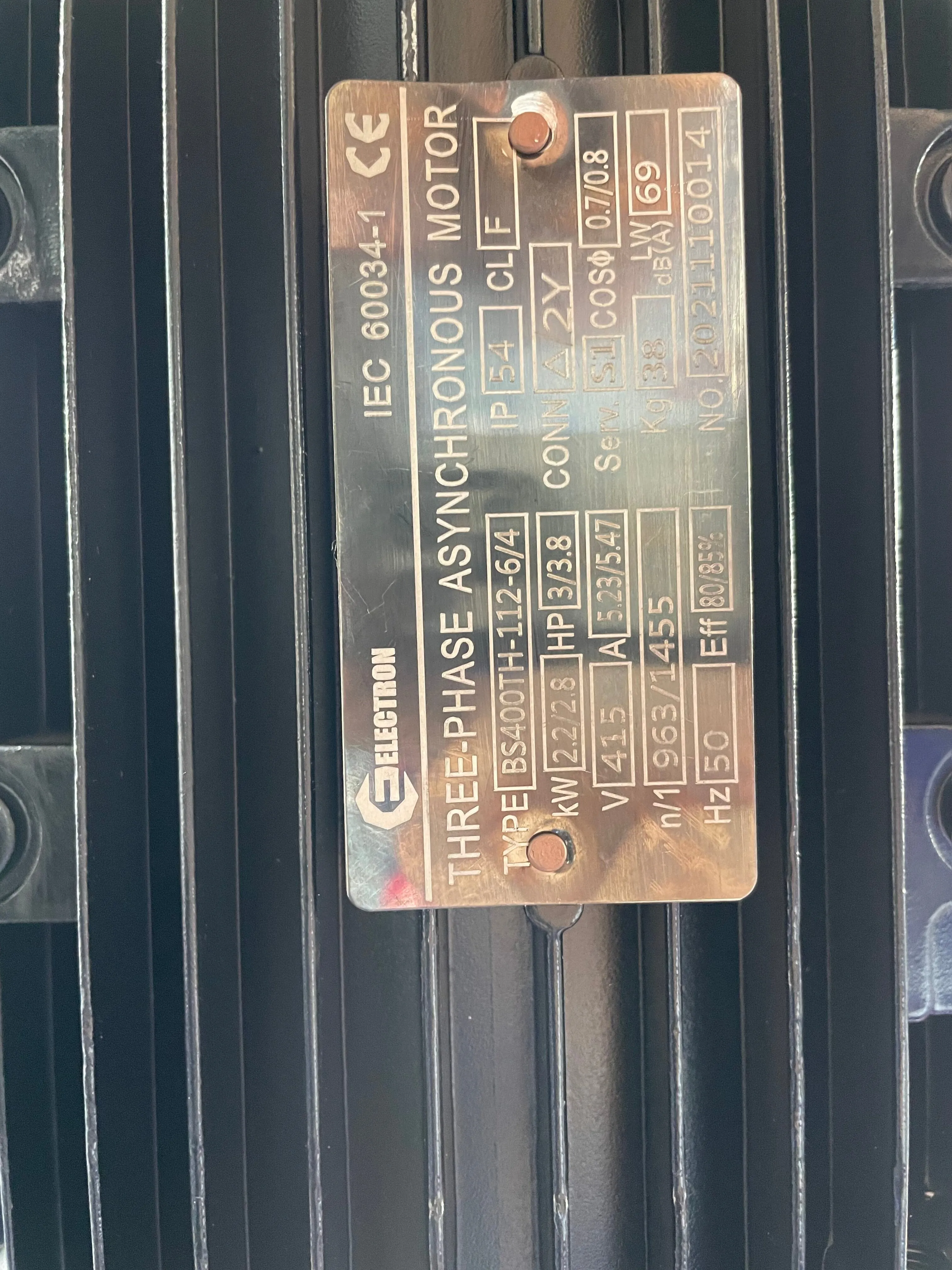

- Motor Power : 2.8 kW
- Drive : Gear
- Packing Size : 230 x 83 x 158 cm
- Net Weight : 630 kg
- Gross Weight : 760 kg
